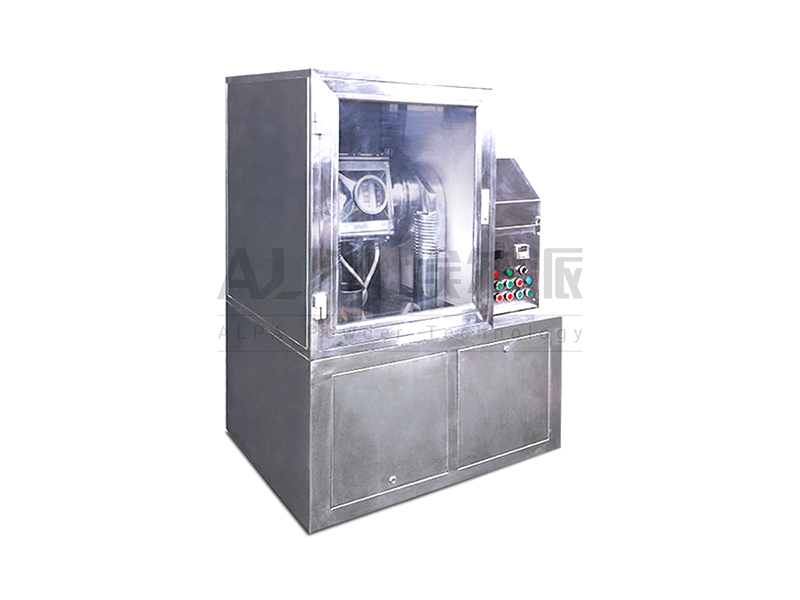

Herb Vibration Mill

Under the high frequency vibration of high-speed vibration exciter (or vibration motor), the grinding medium (rod, segment and ball) in the grinding cylinder makes strong projectile motion, high-speed rotation motion and slow revolution motion, which causes strong impact, friction and shear action on the materials during the dispersion period, so that the materials are superfine comminuted and evenly mixed.


• Available D50:2.5～150μm
• Suitable for the grinding of toughness, fiber, sponge, high oil and high sugar content of materials which are difficult to be grinded by general grinders.
• Good smashing effect on brittle and hard materials
• various configurations such as normal temperature, water cooling, low temperature, ultra low temperature, anti-oxidation, anti-explosion, etc. to reduce the temperature in the grinding chamber, which is conducive to the grinding of heat sensitive materials
• suitable for micron-sized grinding operation
• Suitable for plant pollen spores to break the wall, breaking the wall rate of 95%.
• Designed for use in the pharmaceutical industry in accordance with GMP/FDA standards.
• Wide range of application, Suitable for dry, wet grinding, precision mixing, coating.
• Grinding is carried out under fully sealed conditions, free of dust, high collecting efficiency, no environmental pollution.
• The design of the whole machine is reasonable, the amplitude is adjustable, and the working time is set, which is easy to operate.
• Compact structure and small occupation.easy to disassemble and clean
• Simple process, high cost performance.
• Lower installation power, wide application, high cost-performance.
• PLC control system, easy operation.
• Grinding chamber with cooling jacket, Adjust the temperature and flow of water to control the temperature of the grinding chamber; or configure a strong cooling system, operating at temperature of -30ºC～0ºC.
• Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials.

By strong vibration of the vibration source, the material in the grinding chamber is in the fluidized state, and is subjected to the high-strength impact of the grinding rod, such as collision, cutting, grinding and squeezing, so that the material can reach the micron pulverization or cell wall disruption in a short time. At same time, the grinder can also be used as a precision mixer and a coating modifier. By adjusting the intensity of vibration, it is convenient to control the fineness of the material to be grinded. Dry and wet pulverizing operations are both available. Meet GMP requirements, easy to assemble and disassemble, suitable for refueling operations. It has various working configurations such as normal temperature, water cooling, low temperature, ultra-low temperature, anti-oxidation and anti-explosion, which can reduce the temperature in the grinding chamber and facilitate the crushing of heat-sensitive materials. Widely used in Chinese herbal medicine, medicine, food, health products, cosmetics and other industries. It is a grinder with simple process and high cost performance.
